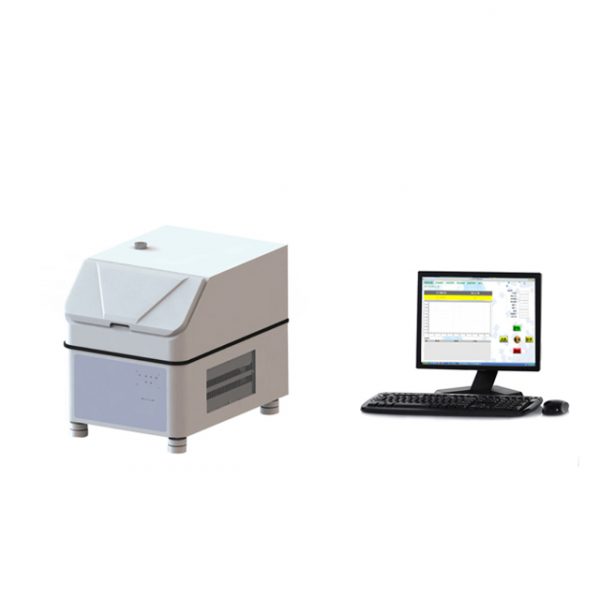

ASTM E96 Textiles and Nonwovens Water Vapour Permeability Tester

ASTM E96, ASTM D1653, ISO 2528, TAPPI T464, DIN 53122-1, GB/T 1037, GB/T 16928, YBB 00092003-2015

Films
Plastic films, plastic composite films, paper-plastic composite films, coextruded films, aluminum coated films, aluminum foil composite films, glass fiber aluminum foil paper composite films and many other film materials

Sheeting
PP, PVC and PVDC sheeting, metal foils, rubber pads and other sheeting materials

Paper and Paper Board
Aluminum coated paper for cigarette, paper aluminum plastic composite film and other paper and paperboards

Textiles and Nonwovens
Textiles and nonwoven fabrics

Construction Materials

Geotextiles, felt, roofing and building materials, vapor barrier membranes, etc.

Aseptic Wound Protection Films and Medical Plasters

Feature:

Based on the cup method test principle, it is a professional water vapor transmission rate (WVTR) test system for thin film samples, which can detect water vapor transmission rates as low as 0.1g/m2·24h; equipped with a high-resolution scale The heavy sensor provides excellent system sensitivity while ensuring high accuracy.

Wide range, high precision, automatic temperature and humidity control, easy to achieve non-standard testing

The standard blowing wind speed ensures a constant humidity difference between the inside and outside of the breathable cup

The system is automatically cleared before weighing to ensure the accuracy of each weighing

The system adopts cylinder lifting mechanical structure design and intermittent weighing measurement method, which effectively reduces the system error

The quick-access temperature and humidity calibration socket is convenient for users to perform quick calibration

Provide two fast calibration methods, standard film and standard weight, to ensure the accuracy and versatility of test data

The sophisticated mechanical design not only ensures the ultra-high precision of the system, but also greatly improves the inspection efficiency

The 6 breathable cups can be independently tested, the test process does not interfere with each other, and the test results are displayed independently

Windows-based operation interface, convenient for user operation and fast learning

Support multi-format storage of test data, convenient for data import and export

Supports convenient historical data query, comparison, analysis and printing and other functions

Parameter:

Test range: 0.1~10,000G/m2·24H (normal)

Number of samples: 6 pieces (data are independent)

Test accuracy: 0.01 G/M2·24H

System resolution: 0.0001 G

Temperature control range: 15℃~55℃ (normal)

Temperature control accuracy: ±0.1℃ (normal)

Humidity control range: 90%RH~70%RH Note (standard 90%RH)

Humidity control accuracy: ±1%RH

Blowing wind speed: 0.5~2.5 M/S (non-standard optional)

Sample thickness: ≤3 MM (other thickness requirements can be customized)

Test area: 33 CM2

Sample size: Φ74 MM

Air source: air

Air pressure: 0.6 MPA

Interface size: Φ6 MM polyurethane tube

Power supply: 220VAC 50HZ / 120VAC 60HZ

Dimensions: 660 MM (L)×480 MM (W)×525 MM (H)

Net weight; 70KG

Remarks: Refers to the relative humidity on both sides of the membrane, and the corresponding humidity in the test chamber is 10%RH-30%RH.
