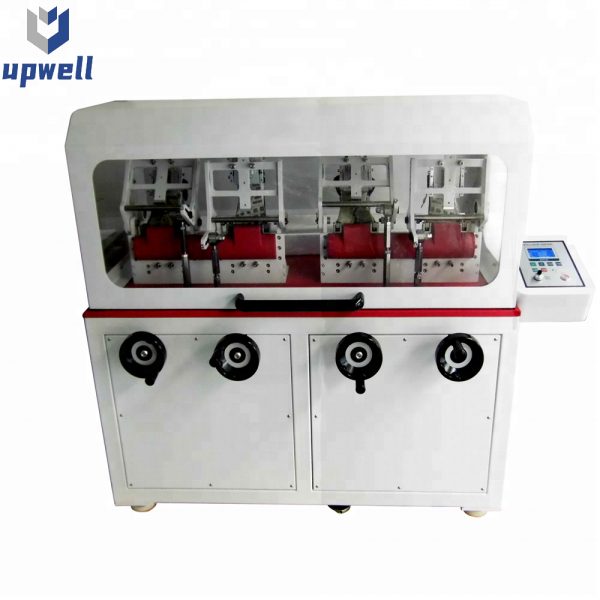

EN ISO 20344 Shoes Flexing Resistance Testing Machine
Whole Shoes Flexing Resistance Testing Machine聽is used to determine the resistance of materials to cut growth during repeated flexing. It is especially applicable to outsoles of footwear including sole constructions.
Related Testing Standard:聽EN ISO 20344
- Description
- Inquiry
Whole Shoes Flexing Resistance Testing Machine聽is used to determine the resistance of materials to cut growth during repeated flexing. It is especially applicable to outsoles of footwear including sole constructions.
聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽
Features:
1,聽聽The shoes testing machine has three workstations presented horizontally for operator ease. Loading, unloading and measurements are also much easier to carry out with the workstations presented in this manner;
2,聽Samples are set at 120-150 flexes per minute (adjustable) and the number is recorded on a counter which has the facility to pre-set the number of flexes required;
3,聽The Whole Shoes Flexing Testing Machine is robust and non-corrosive materials are used where applicable in its construction.
4,聽The聽Shoes Flexing Testing Machine is fitted with high performance motor, which is a new concept in machine drive and control.
Shoes Flexing Resistance Testing Machine Parameter:
Testing speed | 120~150rpm, adjustable |
Angle of flex | 90 |
Flexing mode | vertical type |
Working position | 3 |
Radius of circular shaft | 15mm |
Cutter width聽聽聽聽 | 2卤0.1mm |
Counter聽 | 6 digits, 0~999,999 |
Power supply | 220V, 50/60Hz single phase; 110V, 60Hz,single phase (as required) |
Dimension聽聽 | 900脳350脳400mm (L脳W脳H)聽聽 |
Weight | 70kg |
