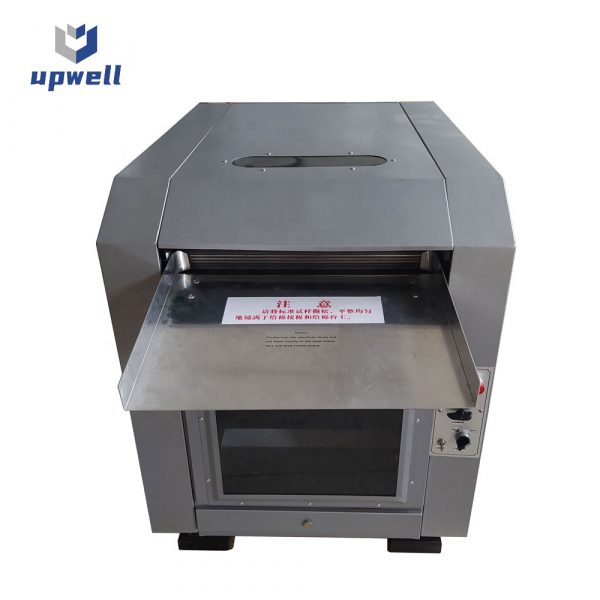

Fibre Lab Raw Cotton Analyzer

Fibre Lab Raw Cotton Analyzer For Testing The Percentage Of Trash Content



Raw Cotton Analyzer聽is used to determine the impurity content of raw cotton, cotton rolls, card sliver and聽defect rate of chemical fibre.

The machine uses the specific gravity differences of fibre and impurities to separate the fibre after carding from impurities under the action of air flow and centrifugal force.

Categories: Tags:
  • Description
  • Inquiry

Application:聽

聽Raw Cotton Analyzer聽is used to determine the impurity content of raw cotton, cotton rolls, card sliver and聽defect rate of chemical fibre.

The machine uses the specific gravity differences of fibre and impurities to separate the fibre after carding from impurities under the action of air flow and centrifugal force.

It consists of feed roller, licker-in, air blower, actuating device, etc.

聽Raw Cotton Analyzer Parameter:聽

Machine width490mm
Feed roller
Diameter57.15mm
Speed0.9rpm
Licker-in
Diameter238.76mm
Speed900rpm
Separation between feed plate and licker-in聽0.18-0.23mm
Separation聽between mote knife and licker-in0.53-0.61mm
Separation聽between fairing plate and licker-in0.15-0.23mm
Gap of air flow adjusting plate0.20-0.40mm
Power supplyAC380V 60Hz
Dimension1019*715*874mm聽(L*W*H)
Weight280kg
Raw Cotton AnalyzerYG041
