ISO 20344 Safety Footwear Compression Test Machine

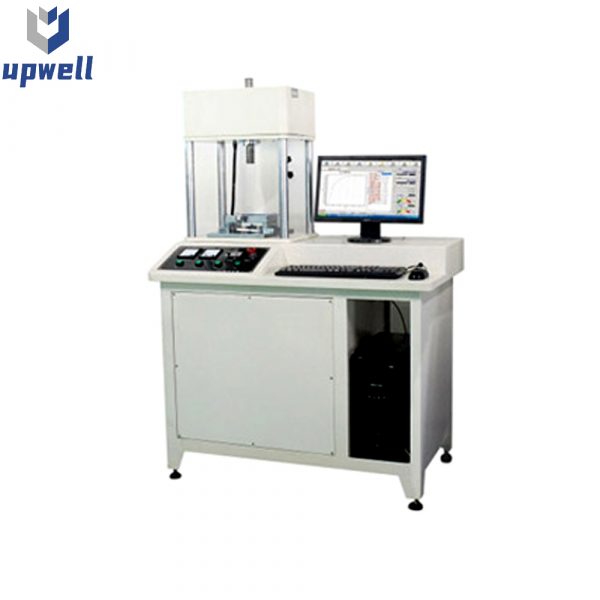

Safety footwear compression test apparatus This machine is used to determine the safety footwear ability to resist the compression
Related Testing Standard:EN 344Â ISO 20344Â LD50
- Description
- Inquiry
APPLICATION
Safety footwear compression test apparatus This machine is used to determine the safety footwear ability to resist the compression. Place the steel head of the safety footwear between two plates and then giving the provisions of the pressure and then test the degree of subsidence steel head to determine the safety footwear ability to ensure the safety of the toes.
KEY SPECIFICATIONS
| Compression force | 15±0.1KN |
| Compression speed | 5±2mm/min |
| Plate hardness | 60HRC |
| Resolution | 1/10000 |
| Power supply | AC220V 100W |
| Dimension | 820×580×710mm |
| Weight | 148kg |
