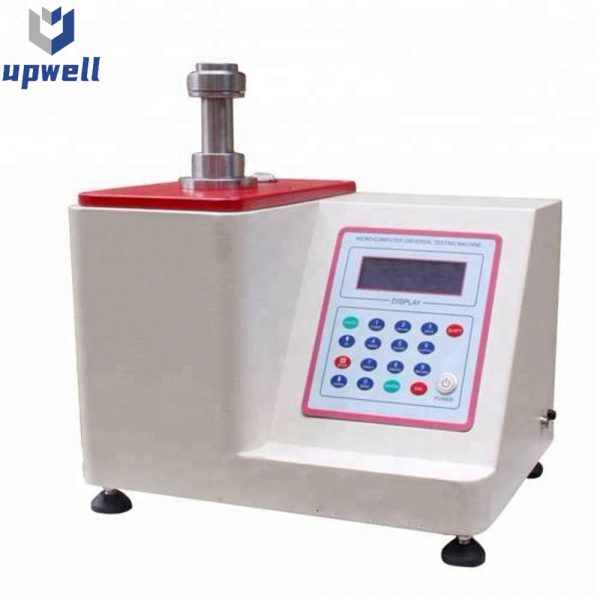

ISO 3379,17235 Footwear Lastometer
Footwear Lastometer  is used to determine distension and strength of leather grain. It is applicable to boot and shoe upper leather and light leather. It uses the clamping ring and cap to clamp round specimen and a steel ball to press against the centre of the flesh side of the specimen. The pressure and distension produced are recorded at grain crack and at burst (if bursting occurs).Â
Related Testing Standard:Â ISO 3379,17235
- Description
- Inquiry
Application:Â Â
Footwear Lastometer  is used to determine distension and strength of leather grain. It is applicable to boot and shoe upper leather and light leather. It uses the clamping ring and cap to clamp round specimen and a steel ball to press against the centre of the flesh side of the specimen. The pressure and distension produced are recorded at grain crack and at burst (if bursting occurs).Â
                      Â
Features:
1Â Â Â Â Servomotor to drive the steel ball;
2Â Â Â Â Â Load and distension figures recorded on LED;
3Â Â Â Â Â Test several specimens and calculates average load and distension;
4Â Â Â Â Â Â Â English control panel;
5Â Â Â Â Â Compact structure and easy to operate;Â
Key Specification:Â
Max. load | 100kg |
Units | kgf, N, G, lb |
Resolutionan> | 1/50000 |
Diameter of steel ball | Φ6.25mm |
Diameter of test area | Φ25mm |
Relative speed of ball to clamp | 12mm/min |
Max. distension | 45mm |
Readability of distension | 0.01mm |
Distension error | ≤0.05mm |
Distention rate | 0.2mm/s |
