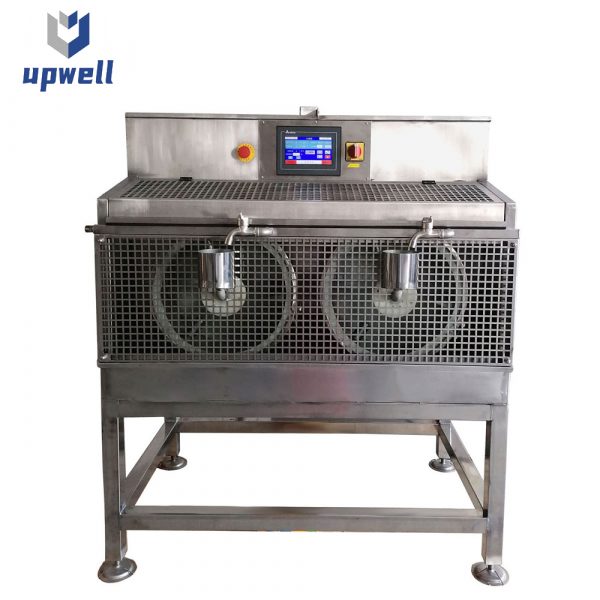

Leather Dyeing Machine For Lab Use With Muti-Drum
Leather dyeing machine聽is special designed for leather and fur color matching test, and satisfies the testing requirement of counterstain etc.
- Description
- Inquiry
APPLICATION
Leather dyeing machine聽is special designed for leather and fur color matching test, and satisfies the testing requirement of counterstain etc.
Feature Of Leather Dyeing Machine:
- The drum聽adopts the German full-isolated聽pump heating & circulating technology, which heat the circulating medium (water) in the interlayer of the drum, and heat up leather liquid inside the drum;
- Each two drums share one set of temperature control system with high control accuracy and large temperature range, avoid temperature unevenness of two color matching tests;
- Drum rotation speed can be regulated steplessly by frequency converter with between 0~40rpm;
- Full-featured single chip controller can perform forward & backward rotations, interval stops, stop operation , and forward & backward jogging operation;
- Stop operation for any one of drum at will during rotation;
- Special designed drum door to let drain and take sample easy, and drain clean without any residual;
- Drum body use 316# stainless steel
- Use silicone rubber O-ring, resistance to high temperature ageing and chemical corrosion, no color fade;
- Special designed anti-steam block loading hopper to avoid wounding by steam;
- Tempered glass window to let test process visible;
- V-belt driving system is stable starting and low vibration, low noise and long service life at low maintenance cost;
- Provide series products with聽2- tandem, 4-tandem and 6-tandem drums are selectable.
KEY SPECIFICATION of聽Leather Dyeing Machine
聽聽 Model | GSD-35 | GSD-40 | GSD-401 |
Drum size | 桅350脳150 | 桅400脳150 | 桅400脳200 |
Drum number | 2- tandem, 4-tandem and 聽 6-tandem drums are selectable | ||
Load capacity | 1kg | 1.3kg | 1.6kg |
Drun speed | 0-35rmp (stepless 聽 adjustable) | ||
Electric heating power | 0.37 kW | 0.37 kW | 0.75 kW |
Temperature rage | Room temperature~85掳C卤1掳C | ||
overall dimensions(mm) | 2000脳600脳1200 (Four drums) | 2000脳600脳1200 (Four drums) | 2100脳700脳1200 (Four drums) |
Total weight | 200 kg | 220 kg | 240 kg |
