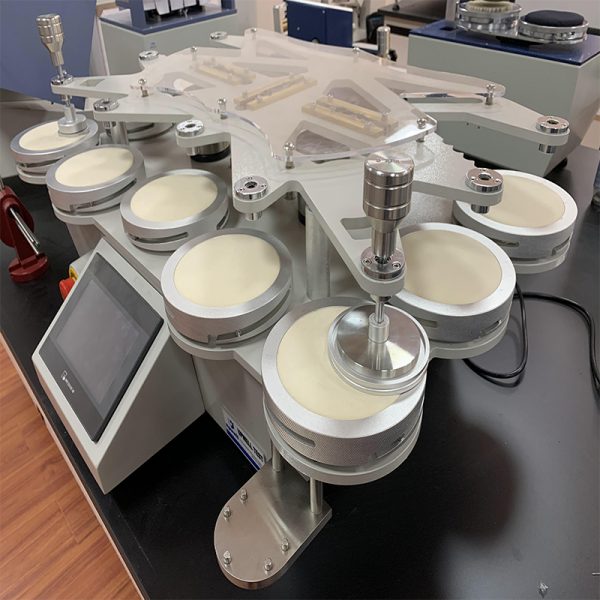

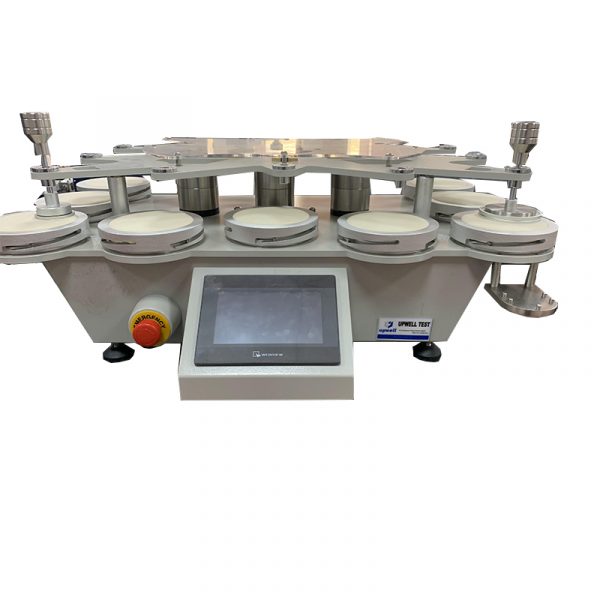

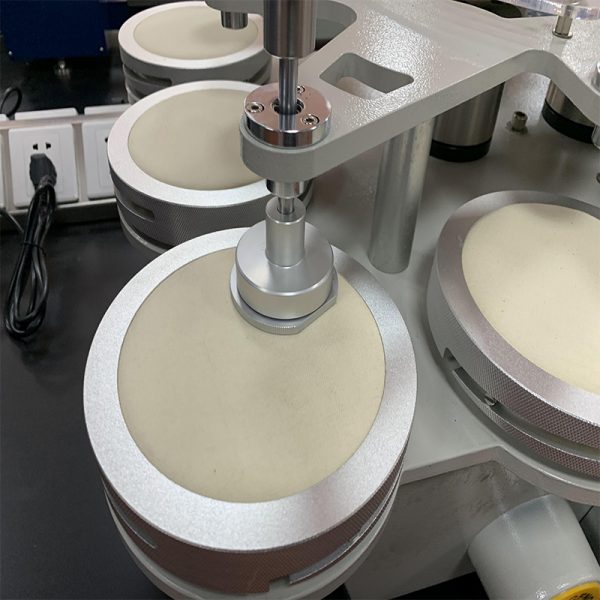

Martindale Fabric Abrasion Tester

Martindale Abrasion & Pilling Tester : suitable for the wear-resistance and grinding test under certain pressure of woven and wool-blend fabrics, Leather, knitted goods and non-woven fabric

Features :

• Machines with two Lissa-jous trajectory and a reciprocating linear track
• Using color touch-screen operation, PLC control, each working position can be controlled separately.
• Motor overheat protection, convenient operation.
• There is a alarm when the test is finished.
• Datas can be restored after the power failure.

Technical Parameters:

Work-station number : 9 Pcs
Counter display : Pre-set counter display: 0-999999
Cumulative counter display: 0-999999

Motion speed : 47.5±2.5rpm
Abrading table diameter : φ120mm
Test pressure(abrasion test)
A: cloth specimen clamp:198g±2g
B: textile specimen hammer:395g±2g (Equal to 9Kpa)
C: furniture deck specimen hammer:594g±2g (Equal to 12Kpa)

Pressure test (pilling test)
A: cloth specimen clamp:155g±1g
B: textile specimen hammer:260g±1g

Weight of Load hammer: 2385g±10g
Dimension: 850mm×600mm×400mm
Weight: Machine 120kgs Accossiers box: 22kgs
Voltage supply:220V/110V, 50HZ/60HZ
