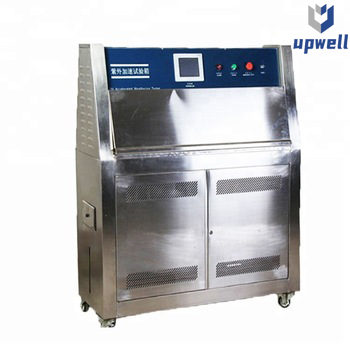

UV weathering tester Accelerated aging test chamber

Accelerated aging test chamber can simulate the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks,

  • Description
  • Inquiry

Product Application

Accelerated aging test chamber can simulate the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks,
you can know the damage of material at outside for several months or several years, Damage
types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.

Main functions:
Climatic Simulate Solar Panel Weather Resistance UV Accelerate Aging Test Equipment / Machine / Instrument / Chamber / Tester can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and
the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.



Applicable industries:
Factory Price Weathering Accelerated UV Aging Test Chamber For Paint Plastic is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto,cosmetics, metals, electronics, electroplating, medicine, etc..


Studio Size400W×1140D×390Hmm
Outside dimension500W×1300D×1360Hmm
MaterialsInside and Outside SUS#304 stainless steel
Temperature rangeRT+10~70°C
Temperature uniformity±1°C
Temperature fluctuation±0.5°C
Temperature controlPID SSR control
Humidity range ≥90%RH
ControllerKorean TEMI 880 programmable controller
Control modeBalance temperature humidity control (BTHC)
Test cycle settingIllumination, condensation and water spray test cycle is programmable
Lamp power40W/Piece
Distance from sample to lamp50±3mm (adjustable)
Centre distance between the lamp70mm
Irradiance1.0W/cm2
Wavelength ultraviolet lightUV-A: 315-400mm; UV-B: 280-400mm (8pcs, 1600h lifetime)
Effective irradiation areas640×1140mm
Irradiation black panel temperature50°C~70°C
Standard Specimen Size75×290mm (24pcs can be tested each time)
Required water depth for water channel25mm, automatically control
Testing time0~999H, adjustable
Power220V/50Hz /±10% 5KW
